Marin

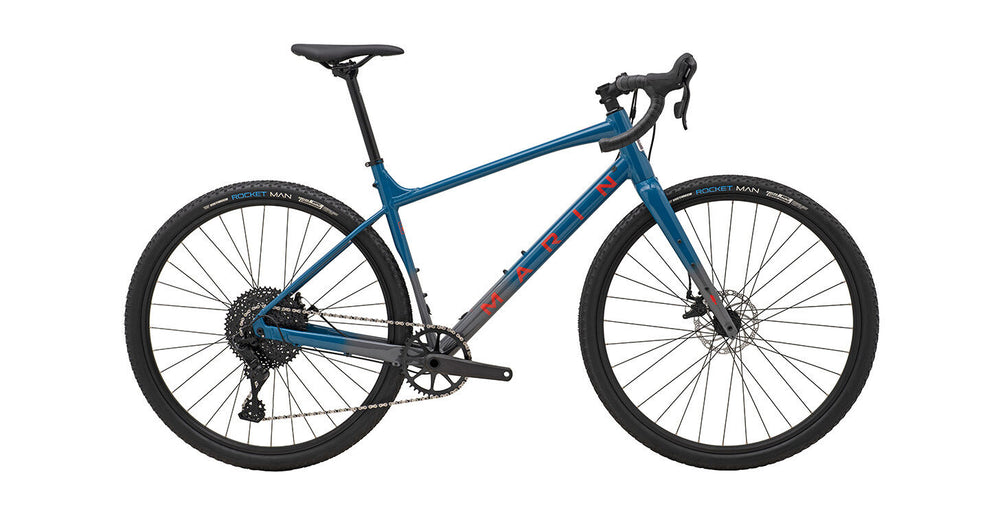

Marin Gestalt X10
$1,400.00
Aggressive Drop-Bar Gravel / Drop-Bar MTB · 700C/650B
The Gestalt X takes Marin's Beyond Road Geometry to the next level of aggressive dirt exploration. Mountain-bike-inspired numbers — a 67.5° head angle, long wheelbase, short 50mm stem, and wide 480mm flared bar — mean it carves technical terrain like nothing else in the drop-bar world. Room for massive tires: up to 700x50mm or 650Bx54mm. Uses a wide-range 1x10 microSHIFT Advent drivetrain for simplicity, has dropper-post routing, and dual-piston Tektro mechanical discs. A true drop-bar mountain bike.
At a Glance
- Frame: Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing (incl. dropper), Mudguard & Rack Mounts, Flat-Mount Disc, 142x12mm Thru-Axle
- Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc
- Rear Derailleur: microSHIFT Advent, 10-speed, clutched
- Brakes: Tektro MD-C500 Mechanical Disc, 160mm rotors
- Rims: Marin Aluminum Double Wall, 25mm Inner, Disc Specific
Full Specifications
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing (incl. dropper), Mudguard & Rack Mounts, Flat-Mount Disc, 142x12mm Thru-Axle |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc |
| Rear Derailleur | microSHIFT Advent, 10-speed, clutched |
| Shifters | microSHIFT Advent drop-bar |
| Crankset | Alloy 42T narrow-wide (chain retention without external guide) |
| Cassette | SunRace 11-51T, 10-speed |
| Brakes | Tektro MD-C500 Mechanical Disc, 160mm rotors |
| Rims | Marin Aluminum Double Wall, 25mm Inner, Disc Specific |
| Tires | Vee Rocket Man or similar, 700 x 45mm |
| Handlebar / Stem | Marin 480mm wide 16° flared drop / 50mm stem |
| Max clearance | 700x50mm or 650Bx54mm |
| Geometry | 67.5° head angle (slack for gravel), dropper-post compatible |
