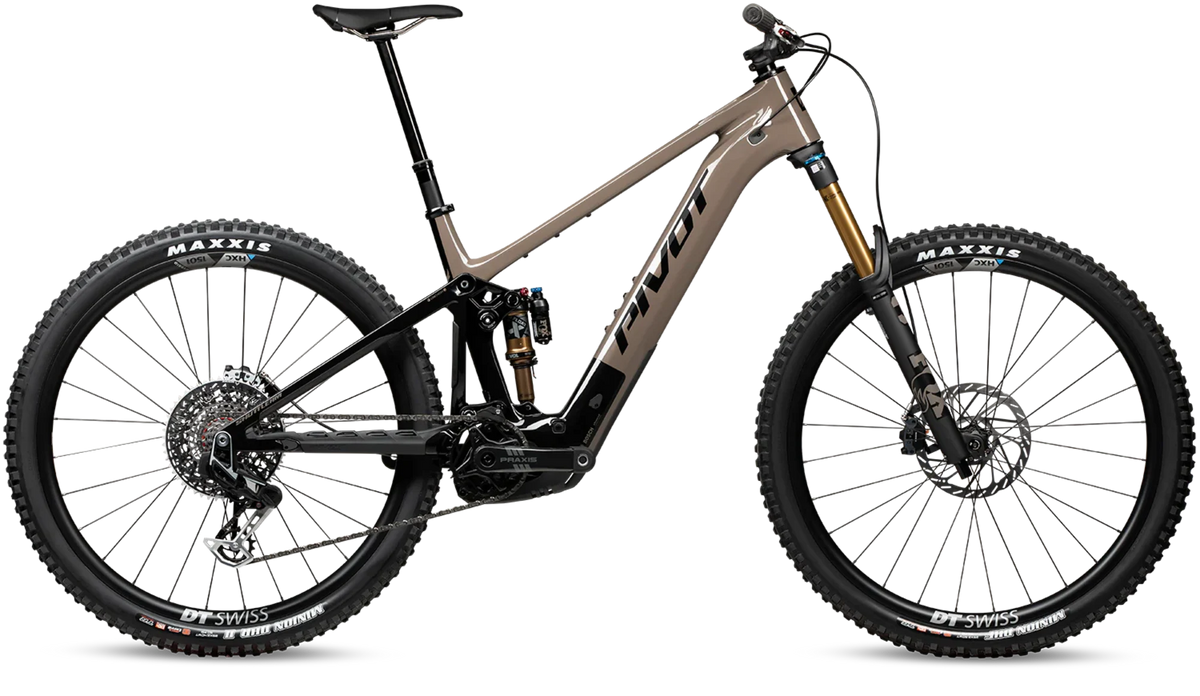

Pivot Shuttle AM Ride Eagle 70/90
$11,500.00
Full-Power Carbon E-MTB (All-Mountain) · 29"
Pivot's Gen 2 Shuttle AM for 2025 is one of the lightest, most natural-riding full-power e-MTBs you can buy. Ultralight Hollow Core carbon frame, 150mm of dw-link rear travel, and a 160mm Fox 36 Performance fork up front. The Bosch Performance Line CX (Gen 5) motor cranks out 100Nm of torque / 750W peak power, fed by a long-range 800Wh integrated battery. The Ride Eagle 70/90 build comes with a mechanical SRAM Eagle 90 Transmission — simple, reliable, and crisp — with DB8 4-piston brakes, 200mm rotors, DT Swiss Hybrid H1900 wheels, and Maxxis EXO+ tires. One of the most balanced e-MTBs on the market.
At a Glance
- Frame: Ultralight Hollow Core Carbon, 150mm rear travel, 29" wheels (Mullet compatible via high flip chip), dw-link suspension, Pivot Cable Port System, SRAM UDH, BSA threaded BB
- Motor: Bosch Performance Line CX (Gen 5), 100Nm torque, 750W peak power
- Battery: Bosch PowerTube 800Wh (integrated)
- Fork: Fox 36 Performance, 160mm travel, 44mm offset
- Rear Shock: Fox Float X Performance, trunnion mount
Full Specifications
| Frame | Ultralight Hollow Core Carbon, 150mm rear travel, 29" wheels (Mullet compatible via high flip chip), dw-link suspension, Pivot Cable Port System, SRAM UDH, BSA threaded BB |
| Fork | Fox 36 Performance, 160mm travel, 44mm offset |
| Rear Shock | Fox Float X Performance, trunnion mount |
| Motor | Bosch Performance Line CX (Gen 5), 100Nm torque, 750W peak power |
| Battery | Bosch PowerTube 800Wh (integrated) |
| Range Extender | Compatible with Bosch PowerMore 250Wh |
| Display / Remote | Bosch System Controller (top-tube integrated); Bosch Mini Remote |
| Modes | Turbo, eMTB+, eMTB, Tour+, Walk Assist |
| Drivetrain | SRAM Eagle 90 T-Type Transmission, 12-speed, mechanical |
| Brakes | SRAM DB8, 4-piston, 200/200mm rotors |
| Wheels | DT Swiss Hybrid H1900 |
| Tires | Maxxis Minion DHF / DHR II, EXO+, 29" x 2.5/2.4" |
| Dropper Post | Size-specific travel (up to 210mm, TranzX YSP23) |
| Stem / Bar | Pivot Phoenix Team Enduro / Phoenix Race Low Rise Carbon 780mm |
| Sizes | S, M, L, XL (flip-chip adjustable geometry) |
