Transition

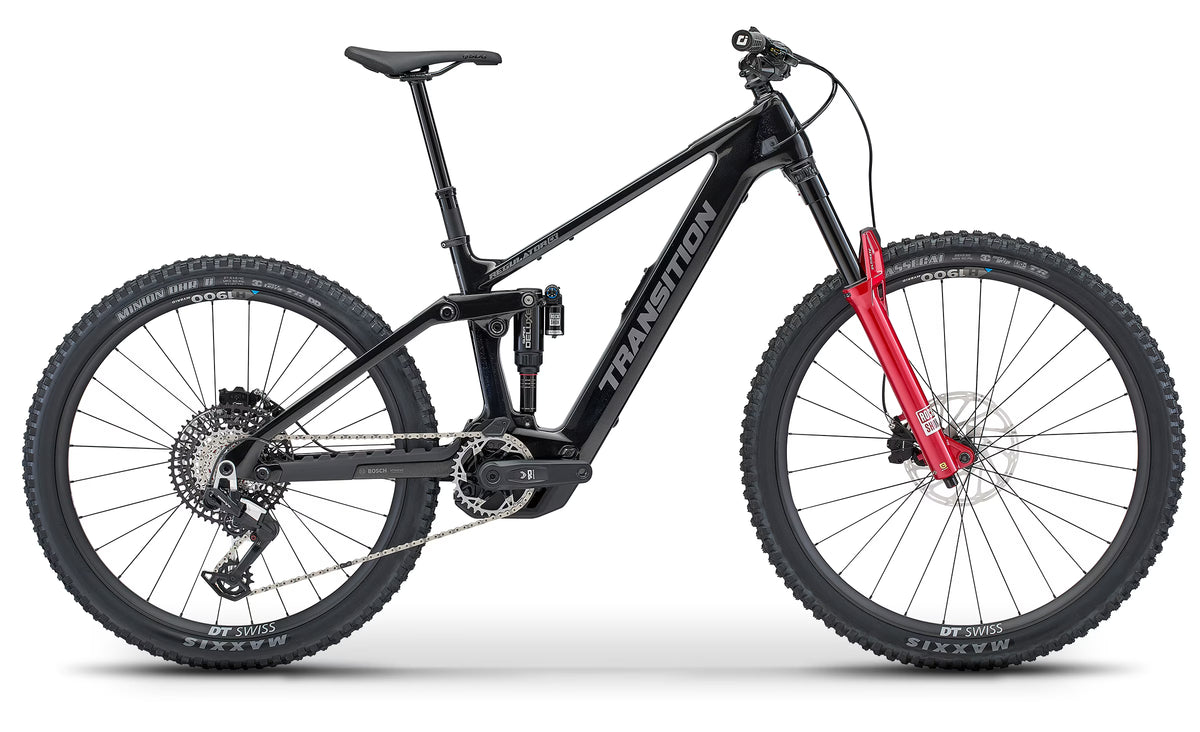

Transition Regulator CX Eagle 90
$13,000.00
Full-Power Carbon E-MTB (All-Mountain) · Mixed (29"/27.5")
Transition's take on a motorized Sentinel — an all-mountain workhorse with an intelligent mixed-wheel platform. 150mm rear / 160mm front travel, carbon chassis, and a Bosch Performance Line CX Gen 5 motor putting out 85 Nm of torque (100Nm with the software upgrade). The 600Wh in-frame battery is supplemented by an optional 250Wh PowerMore range extender, pushing total capacity to 850Wh. Flip-chip geometry adjustment and SRAM Eagle 90 Transmission / Transmission-level parts throughout. A party in the woods, with power.
At a Glance
- Frame: Carbon Fiber, 150mm rear travel, Mixed Wheels (29" front, 27.5" rear), GiddyUp Suspension Platform, SRAM UDH, BSA Threaded BB, flip-chip geometry adjustment
- Motor: Bosch Performance Line CX (Gen 5), 85Nm torque
- Battery: Bosch PowerTube 600Wh (integrated in downtube)
- Fork: Fox 36 or RockShox Lyrik Performance, 160mm travel, 44mm offset
- Rear Shock: Fox Float X or RockShox Deluxe Performance, trunnion mount
Full Specifications
| Frame | Carbon Fiber, 150mm rear travel, Mixed Wheels (29" front, 27.5" rear), GiddyUp Suspension Platform, SRAM UDH, BSA Threaded BB, flip-chip geometry adjustment |
| Fork | Fox 36 or RockShox Lyrik Performance, 160mm travel, 44mm offset |
| Rear Shock | Fox Float X or RockShox Deluxe Performance, trunnion mount |
| Motor | Bosch Performance Line CX (Gen 5), 85Nm torque |
| Battery | Bosch PowerTube 600Wh (integrated in downtube) |
| Range Extender | Optional Bosch PowerMore 250Wh (M-XL frames, max 850Wh) |
| Display | Bosch System Controller |
| Drivetrain | SRAM Eagle 90 T-Type Transmission, 12-speed |
| Brakes | SRAM Maven / TRP Pro EVO, 4-piston, 203/203mm rotors |
| Wheels | DT Swiss, Boost |
| Tires | Maxxis Minion DHF/DHR II or Schwalbe, 29"/27.5" x 2.5/2.4" |
| Weight | ~47.25 lb / 21.4 kg (size L) |
| Geometry | 64.0/64.5° head angle (flip chip) |
| Sizes | S, M, L, XL |
